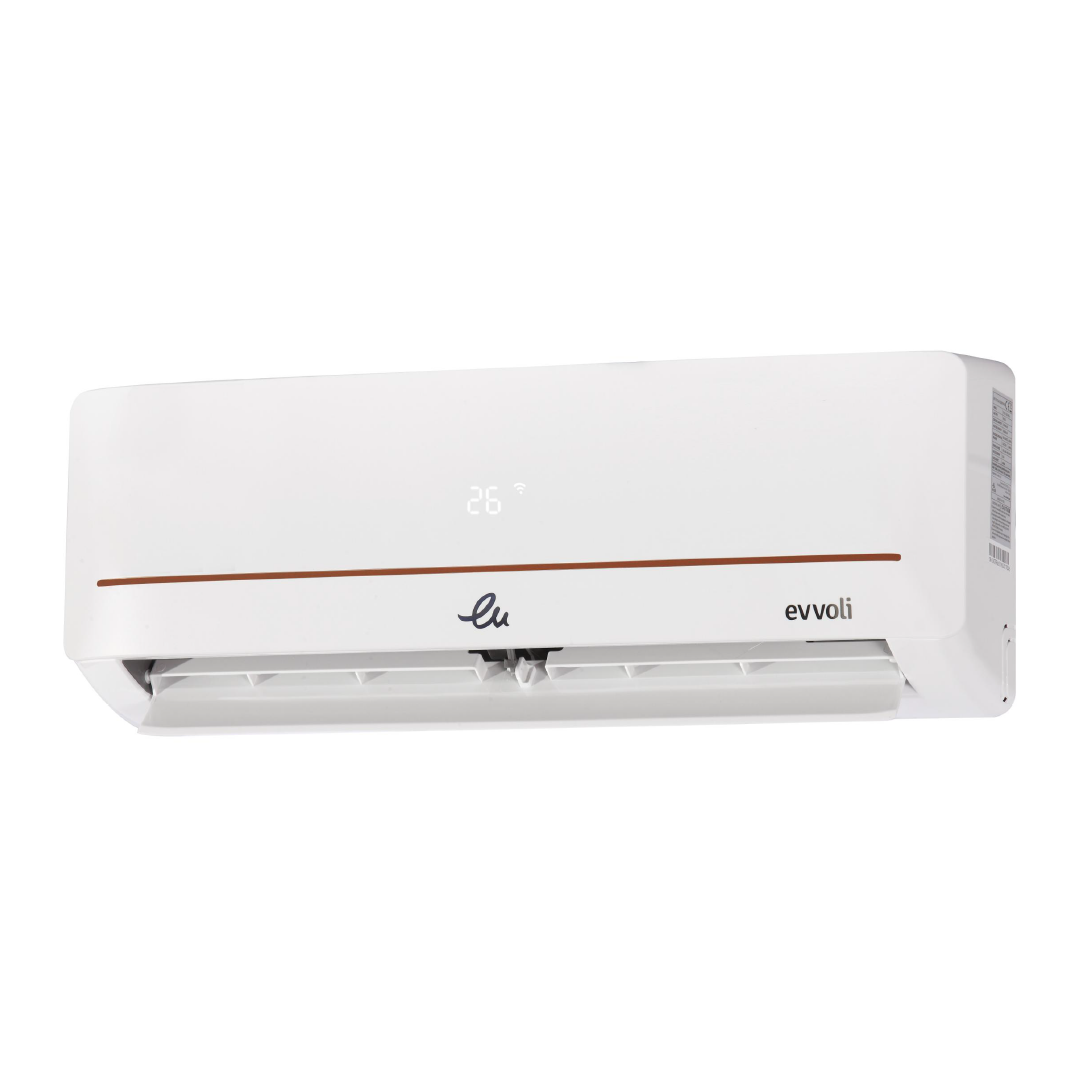

Evvoli Split Air Conditioner with Rotary Compressor

Size: 1 Ton

Experience unparalleled comfort and sophistication with the Evvoli Split Air Conditioner, delivering a blend of cutting-edge features and Italian elegance to elevate your living space.

A++ Inverter Technology: Enjoy exceptional energy efficiency and cost savings with the A++ Inverter technology. This intelligent system adjusts the compressor speed according to cooling or heating needs, providing precise temperature control while minimizing power consumption.
3D Airflow Technology: Enjoy improved air distribution for a more uniform cooling experience throughout your room.
Self-Cleaning Function: Maintain a healthier environment with the self-cleaning function that prevents bacterial growth and dampness, ensuring longevity and comfort.
Efficiently Fast Cooling and Heating: Utilizing R410A gas, this air conditioner offers high-efficiency cooling, eco-friendliness, and compliance with environmental standards. Its higher operating pressures enable better system design for optimal performance.
Continuous Operation with Autorestart: The AC automatically restarts after a power outage, ensuring continuous operation without manual intervention.
Golden Fin: This special coating on condenser coils protects against corrosion, ensures efficient heat exchange for faster cooling and energy savings, and maintains long-term performance in harsh conditions. It also contributes to cleaner indoor air quality by inhibiting microbial growth.

Power Supply

Power supply V, Ph, Hz

220-240V, 1Ph, 50Hz

Cooling (T1)

Capacity Btu/h

12000

Input W

1100

Rated current A

4.8

EER W/W

3.2

Cooling (T3)

Capacity Btu/h

/

Input W

/

Rated current A

/

EER W/W

/

Heating

Capacity Btu/h

12000

Input W

1100

Rated current A

4.8

COP W/W

3.20

Max. input consumption

Max. input consumption W

2050

Max. current

Max. current A

9.5

Starting current

Starting current A

/

Compressor

Model

ASN98D22UFZ

Type

ROTARY

Brand

GMCC

Capacity Btu/h

2935

Input W

748

Rated current(RLA) A

5.35

Locked rotor Amp(LRA) A

/

Thermal protector

/

Thermal protector position

NA

Capacitor uF

/

Refrigerant oil/oil charge ml

VG74/370

Indoor Fan Motor

Model

YKFG-20-4-5-19

Input W

43

Output W

20

Capacitor uF

1.5

Speed(Turbo/Hi/Mi/Lo or Hi/Mi/Lo) r/min

1200/950/750

Indoor Coil

Number of rows

2

Tube pitch(a)x row pitch(b) mm

21x13.37

Fin spacing mm

1.3

Fin type (code)

Hydrophilic aluminum

Tube outside dia.and type mm

Φ7,Inner groove tube

Coil length x height x width mm

605x210x26.74+605x84x26.74

Number of circuits

2

Indoor Air Flow / Noise Level

Indoor air flow (Turbo/Hi/Mi/Lo or Hi/Mi/Lo)

561/475/380

Indoor noise level (Turbo/Hi/Mi/Lo or Hi/Mi/Lo)

39.5/32.5/29.6

Indoor Unit

Dimension(W*D*H) mm

802x189x297

Packing (W*D*H) mm

875x285x375

Net/Gross weight Kg

8.8/11.2

Outdoor Fan Motor

Model

YKT-32-6-203L-8

Input W

72.5

Output W

32

Capacitor uF

2.5

Speed r/min

850

Outdoor Coil

Number of rows

1.0

Tube pitch(a)x row pitch(b) mm

21x13.37

Fin spacing mm

1.4

Fin type (code)

Hydrophilic aluminum

Tube outside dia.and type mm

Φ7,Inner groove tube

Coil length x height x width mm

755x504x13.37

Number of circuits

2

Outdoor noise level

Outdoor noise level dB(A)

53.3

Outdoor Unit

Dimension(W*D*H) mm

770x300x555

Packing (W*D*H) mm

900x345x595

Net/Gross weight Kg

26.8/29.2

Refrigerant Type

Refrigerant type g

R410A/760

Design Pressure

Design pressure MPa

4.2/1.5

Refrigerant piping

Liquid side/Gas side mm(inch)

6.35mm(1/4in)/12.7mm(1/2in)

Max. refrigerant pipe length m

25

Max. difference in level m

10

Connection Wiring

Connection wiring

1.5x4

Plug Type

Plug type

1.5x3/BS plug

Thermostat Type

Thermostat type

Remote Control

Operation Temperature

Operation temperature ℃

17~30

Room Temperature

Indoor(cooling/heating) ℃

17～32/0～30

Outdoor(cooling/heating) ℃

0～50/-15～30

Application area (Cooling Standard)

Application area (Cooling Standard) m2

16～23

Container Loading

Qty per 20 /40 /40HQ

108/225/234

CBM

Indoor m3

0.093515625

Outdoor m3

0.1847475

TTL m3

0.278263125
