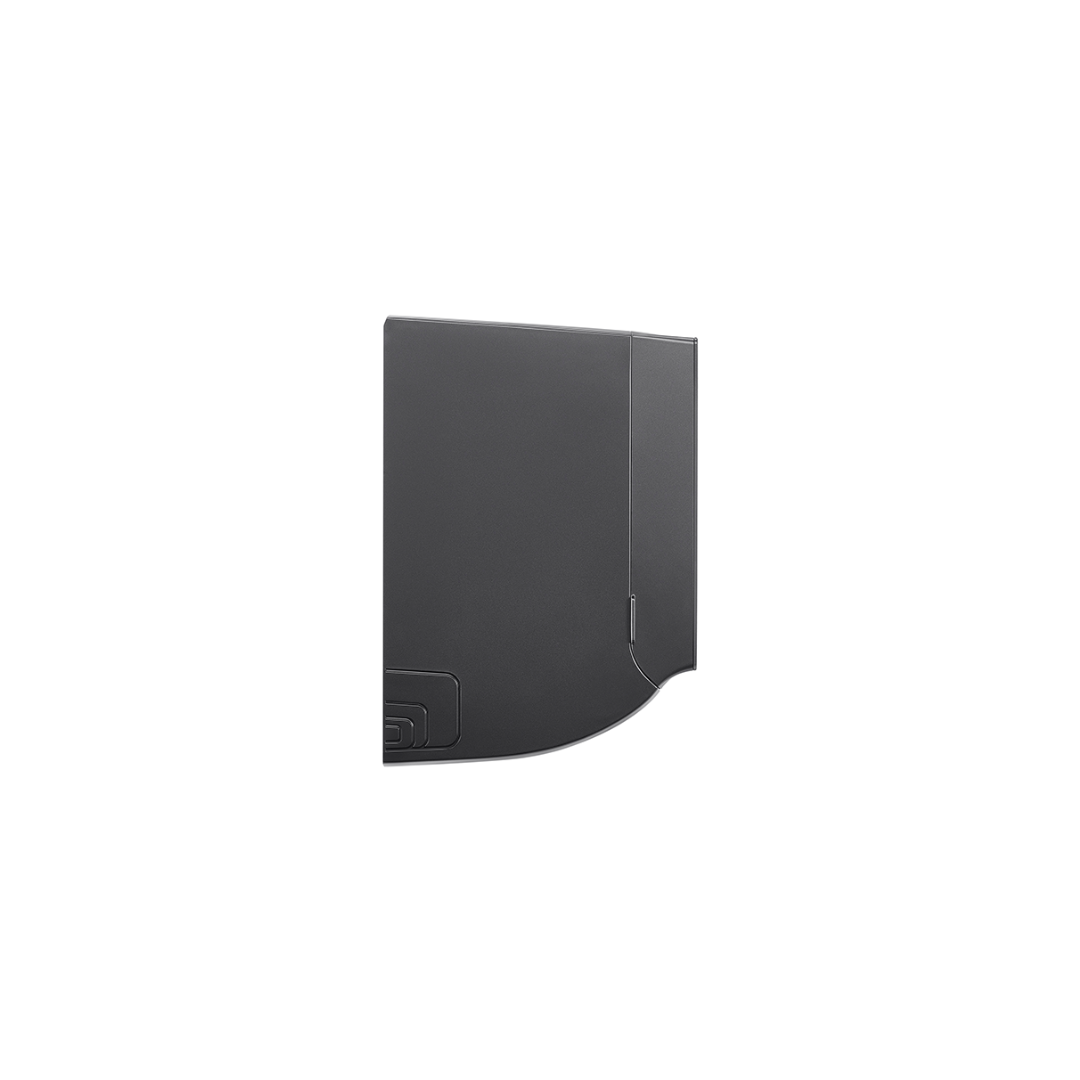

Evvoli Split Air Conditioner with A++ Inverter Technology and Ampere C

Elevate your indoor comfort and style with the Evvoli Split Air Conditioner featuring advanced technology and elegant design elements.

A++ Inverter Technology: Enjoy exceptional energy efficiency and cost savings with the A++ Inverter technology. This intelligent system adjusts the compressor speed according to cooling or heating needs, providing precise temperature control while minimizing power consumption.

Self-Cleaning Function: Maintain a healthier environment with the self-cleaning function that prevents bacterial growth and dampness, ensuring longevity and comfort.

3D Airflow Technology: Enjoy improved air distribution for a more uniform cooling experience throughout your room.

Continuous Operation with Autorestart: Experience uninterrupted comfort as the AC automatically restarts after a power outage, eliminating the need for manual intervention.

Efficiently Fast Cooling and Heating: Utilizing R410A gas, this air conditioner offers high-efficiency cooling, eco-friendliness, and compliance with environmental standards. Its higher operating pressures enable better system design for optimal performance.

Precise Ampere Control: Optimize energy usage with precise regulation of electrical current, enhancing performance while minimizing energy consumption.

Golden Fin: This special coating on condenser coils protects against corrosion, ensures efficient heat exchange for faster cooling and energy savings, and maintains long-term performance in harsh conditions. It also contributes to cleaner indoor air quality by inhibiting microbial growth.

Power Supply

Power supply V,Hz,Ph

220-240V 50Hz, 1Ph

Cooling (T1)

Capacity Btu/h

12000(3500-16000)

Input W

830(260-1600)

Rated current A

3.67

EER （Btu/h)/W

14.458

Cooling (T3)

Capacity Btu/h

10400

Input W

1055

Rated current A

4.72

EER （Btu/h)/W

9.85781990521327

Heating

Capacity W

3957(1172-4750)

Input W

940(300-1750)

Rated current A

4.21

COP W/W

4.21

Max. input consumption

Max. input consumption W

2300

Max. current

Max. current A

10.5

Starting current

Starting current A

/

Compressor

Model

KSK103D33UEZ3

Type

Rotary

Brand

GMCC

Capacity Btu/h

11106.06

Input W

826

Rated current(RLA) A

5.65

Locked rotor Amp(LRA) A

/

Thermal protector

/

Thermal protector position

INTERNAL

Capacitor uF

/

Refrigerant oil/oil charge ml

VG74/310

Indoor Fan Motor

Model

ZKFP-30-8-3-10

Input W

36

Output W

30

Capacitor uF

/

Speed(Hi/Mi/Lo) r/min

1300/1100/940/860

Indoor Coil

a.Number of rows

2

b.Tube pitch(a)x row pitch(b) mm

21x13.37

c.Fin spacing mm

1.2

d.Fin type (code)

Hydrophilic aluminium

e.Tube outside dia.and type mm

Φ7,innergroove tube

f.Coil length x height x width mm

750x336x26.74

g.Number of circuits

4

Indoor Air Flow / Noise Level

Indoor air flow (Turbo/Hi/Mi/Lo) m3/h

830/730/600/550

Indoor noise level (Turbo/Hi/Mi/Lo) dB(A)

43/41/38/33

Indoor Unit

Dimension(W*D*H) mm

971x228x321

Packing (W*D*H) mm

1045x305x405

Net/Gross weight Kg

11.3/14.6

Outdoor Fan Motor

Model

ZKFN-34-10-1-3

Input W

58

Output W

34

Capacitor uF

/

Speed r/min

800/600

Outdoor Coil

a.Number of rows

2

b.Tube pitch(a)x row pitch(b) mm

21x13.37

c.Fin spacing mm

1.4

d.Fin type (code)

Hydrophilic aluminium

e.Tube outside dia.and type mm

Φ7,innergroove tube

f.Coil length x height x width mm

755x504x26.74

g.Number of circuits

4

Outdoor Noise Level

Outdoor noise level dB(A)

54

Outdoor Unit

Dimension(W*D*H) mm

765x303x555

Packing (W*D*H) mm

887x337x610

Net/Gross weight Kg

27.3/29.6

Refrigerant Type

Refrigerant type g

R410A/1100

Design Pressure

Design pressure MPa

4.8/1.5

Refrigerant piping

Liquid side/ Gas side mm(inch)

Φ6.35/Φ12.7(1/4"/1/2")

Max. refrigerant pipe length m

25

Max. difference in level m

10

Connection Wiring

Connection wiring

4x1.5

Plug Type

Plug type

3x1.5 / BS plug

Thermostat Type

Thermostat type

Remote Control

Operation Temperature

Operation temperature ℃

16-30

Room Temperature

Indoor(cooling/ heating) ℃

16-32/0-30

Outdoor(cooling/heating) ℃

0-52/-15-24

Application area (Cooling Standard)

Application area (Cooling Standard) m2

16-24

Container Loading

Qty’per 20’ /40’ /40'HQ

88/186/220

CBM

Indoor m3

0.18234059

Outdoor m3

0.129083625

TTL m3

0.311424215
