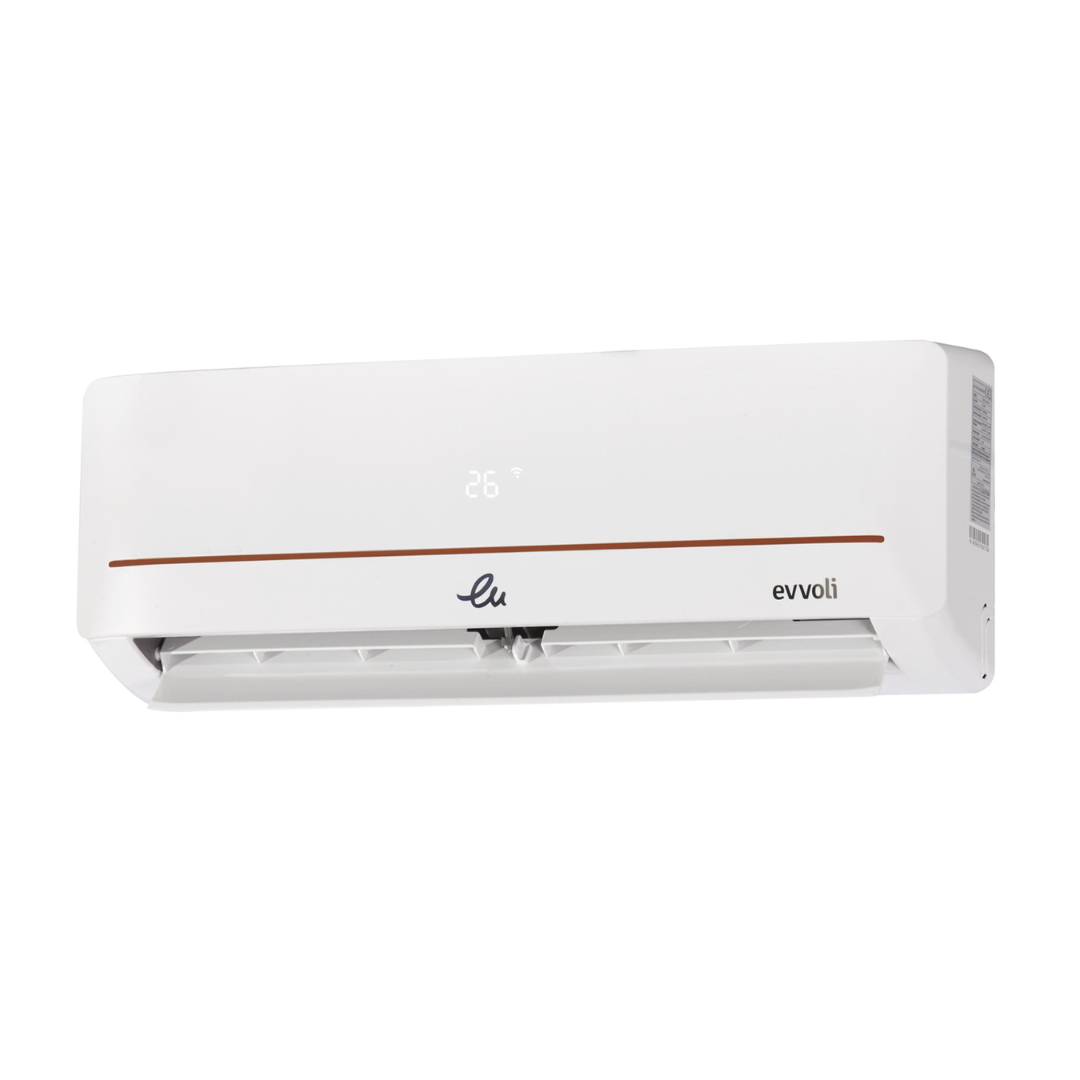

Evvoli Split Air Conditioner with Rotary Compressor

Upgrade your comfort with Evvoli's Split Air Conditioner, combining efficiency, reliability, and style for a luxurious living experience. Add it to your cart now and indulge in next-level comfort and sophistication.

3D Airflow Technology: Enjoy improved air distribution for a more uniform cooling experience throughout your room.

Self-Cleaning Function: Maintain a healthier environment with the self-cleaning function that prevents bacterial growth and dampness, ensuring longevity and comfort.

Efficiently Fast Cooling and Heating: Utilizing R410A gas, this air conditioner offers high-efficiency cooling, eco-friendliness, and compliance with environmental standards. Its higher operating pressures enable better system design for optimal performance.

Continuous Operation with Auto restart: The AC automatically restarts after a power outage, ensuring continuous operation without manual intervention.

Powerful Rotary Compressor: The robust rotary compressor delivers powerful cooling and heating performance, guaranteeing year-round comfort.

Golden Fin: This special coating on condenser coils protects against corrosion, ensures efficient heat exchange for faster cooling and energy savings, and maintains long-term performance in harsh conditions. It also contributes to cleaner indoor air quality by inhibiting microbial growth.

Power Supply

Power supply V, Ph, Hz

220-240V, 1Ph, 50Hz

Cooling (T1)

Capacity Btu/h

12000

Input W

1130

Rated current A

5

EER W/W

3.11

Cooling (T3)

Capacity Btu/h

10400

Input W

1400

Rated current A

6.17

EER W/W

2.18

Heating

Capacity Btu/h

12500

Input W

1060

Rated current A

4.9

COP W/W

3.46

Max. input consumption

Max. input consumption W

1900

Max. current

Max. current A

10.5

Starting current

Starting current A

15

Compressor

Model

PA140M2A-4FTM

Type

Rotary

Brand

GMCC

Capacity Btu/h

11839.6

Input W

1140

Rated current(RLA) A

5.0

Locked rotor Amp(LRA) A

15

Thermal protector

/

Thermal protector position

INTERNAL

Capacitor uF

35

Refrigerant oil/oil charge ml

RB75EA/440

Indoor Fan Motor

Model

YKFG-13-4-38L

Input W

40

Output W

13

Capacitor uF

1.2

Speed(Turbo/Hi/Mi/Lo or Hi/Mi/Lo) r/min

1120/1000/800

Indoor Coil

Number of rows

2

Tube pitch(a)x row pitch(b) mm

21x13.37

Fin spacing mm

1.3

Fin type (code)

Hydrophilic aluminium

Tube outside dia.and type mm

Φ7,innergroove tube

Coil length x height x width mm

605x294x26.74

Number of circuits

3

Indoor Air Flow / Noise Level

Indoor air flow (Turbo/Hi/Mi/Lo or Hi/Mi/Lo)

580/560/490/370

Indoor noise level (Turbo/Hi/Mi/Lo or Hi/Mi/Lo)

39/38.5/35/30.5

Indoor Unit

Dimension(W*D*H) mm

802x189x297

Packing (W*D*H) mm

875x285x375

Net/Gross weight Kg

9.2/11.7

Outdoor Fan Motor

Model

YKT-32-6-203L

Input W

72.5

Output W

32

Capacitor uF

2.5

Speed r/min

850

Outdoor Coil

Number of rows

1

Tube pitch(a)x row pitch(b) mm

21x13.37

Fin spacing mm

1.2

Fin type (code)

Hydrophilic aluminium

Tube outside dia.and type mm

Φ7,innergroove tube

Coil length x height x width mm

744x504x13.37

Number of circuits

2

Outdoor noise level

Outdoor noise level dB(A)

55

Outdoor Unit

Dimension(W*D*H) mm

770x300x555

Packing (W*D*H) mm

900x348x615

Net/Gross weight Kg

35/37.8

Refrigerant Type

Refrigerant type g

R410A/800

Design Pressure

Design pressure MPa

4.8/1.5

Refrigerant piping

Liquid side/Gas side mm(inch)

Φ6.35/Φ12.7(1/4"/1/2")

Max. refrigerant pipe length m

20

Max. difference in level m

8

Connection Wiring

Connection wiring

3x1.5+0.75x2

Plug Type

Plug type

3x1.5 / BS plug

Thermostat Type

Thermostat type

Remote Control

Operation Temperature

Operation temperature ℃

17-30

Room Temperature

Indoor(cooling/heating) ℃

17-32/0-30

Outdoor(cooling/heating) ℃

18-54/-7-24

Application area (Cooling Standard)

16-23

Container Loading

Qty per 20 /40 /40HQ

108/225/234

CBM

Indoor m3

0.093515625

Outdoor m3

0.192618

TTL m3

0.286133625
