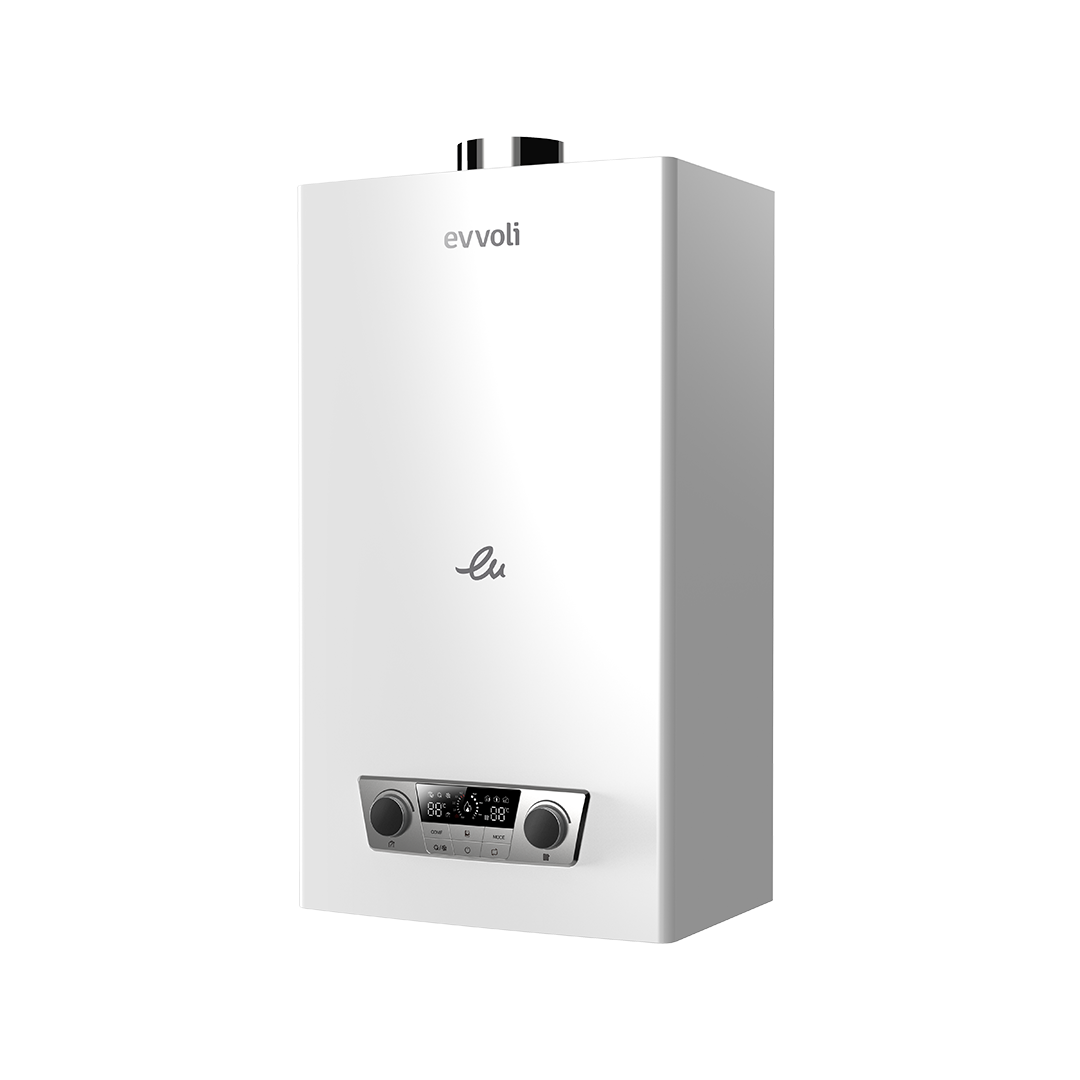

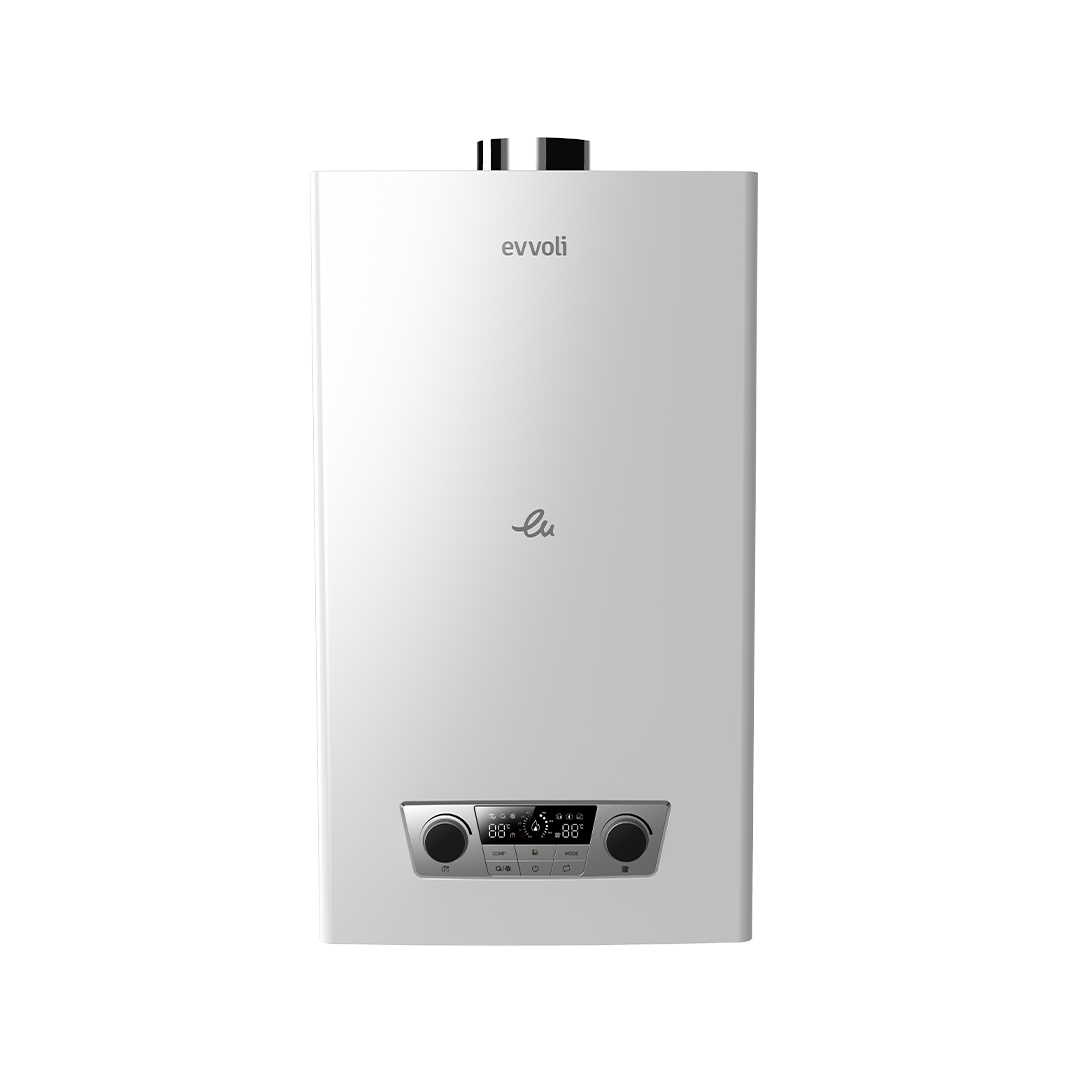

Evvoli EVGB‑CM26 Gas Boiler
Evvoli EVGB‑CM26 Gas Boiler
يشارك



Collapsible content
Key Features
Color
White
Gas Source
Natural gas
Multi-safety protect
Yes
Special floor heating function
Yes
Intelligent preheating
Yes
Constant temperature control
Yes
Large heating power
–
Multi mode (Away, Home, Sleep)
Yes
Waterproofing grade
IPX4D
Insulation grade
Grade Ⅰ
Balance Exhaust type
Yes
Efficiency
89%
Power Supply
Voltage (V)
220
Frequency (Hz)
50
Rated power (W)
26000
Rated Current (A)
8.46
Product and Packaging Information
Product Dimension (WxDxH) (mm)
700x420x240
Package Dimension (WxDxH) (mm)
835x503x322
Net Weight (Kg)
30
Gross Weight (Kg)
33
Shipping Information
Container Loading (20FT/40FT/40HQ)
210/420/480
CBM (m³)
0.135
Product Specification
Rated heating input (kW)
26
Minimum heating input (kW)
8.9
Rated heating output (kW)
23.1
Minimum heating output (kW)
8
Heating temperature regulation range (℃)
30~80
Floor heating temperature regulation range (℃)
30~60
Applicable water pressure of the heating system (Mpa)
0.04~0.3
Maximum pressure of the heating system (Mpa)
0.3
Capacity of the expansion tank (L)
6
Pre-charge pressure of the expansion tank (Mpa)
0.1
Temperature regulation of the sanitary hot water (℃)
35~60
Maximum pressure of the sanitary hot water (Mpa)
0.8
Minimum pressure of the sanitary hot water (Mpa)
0.02
△t=25K nominal hot water production rate (kg/min)
13.2
△t=30K nominal hot water production rate (kg/min)
11
Maximum input electric power (W)
110
Heating water outlet/backwater interface (Inch)
G3/4
Sanitary hot water/cold water interface (Inch)
G1/2
Gas interface (Inch)
G3/4
Cold inlet water (Inch)
G1/2
Hot outlet water (Inch)
G1/2
Flue pipe / Chimney diameter (mm)
φ60/φ100
