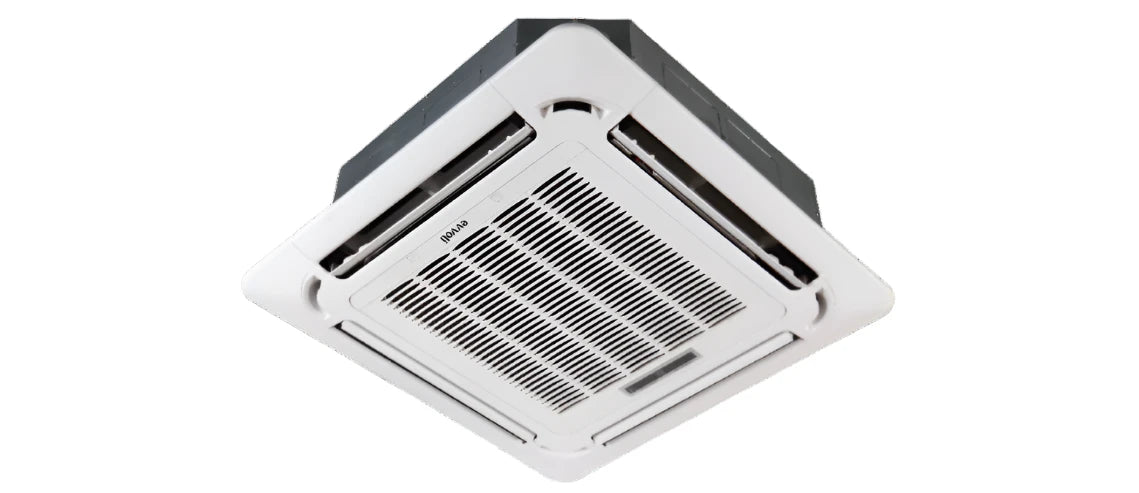

Evvoli Commercial Air Conditioner with Inverter Compressor

Elevate your commercial space with the Evvoli Commercial Air Conditioner, designed to deliver exceptional cooling and heating performance while adding a touch of Italian luxury to your decor.

Golden Fin: This special coating on condenser coils protects against corrosion, ensures efficient heat exchange for faster cooling and energy savings, and maintains long-term performance in harsh conditions. It also contributes to cleaner indoor air quality by inhibiting microbial growth.

T3 DC Inverter Compressor: Experience superior cooling and heating efficiency with the advanced T3 DC Inverter Compressor, delivering optimal performance and energy savings.

4D Airflow Technology: Experience improved 4-directional air distribution, ensuring a consistently uniform cooling experience throughout your room for maximum comfort.

Remote+Wired Control: Enjoy the convenience of remote and wired control options, allowing you to adjust settings effortlessly for personalised comfort.

Efficient Cooling with R410A: Utilizing R410A gas, this air conditioner offers high-efficiency cooling, eco-friendliness, and compliance with environmental standards.

Internal Water Pump: Benefit from the internal water pump feature, enhancing the efficiency and effectiveness of the air conditioner's cooling operations.

Flexible Installation: Adapt the air conditioner to your space with flexible installation options, ensuring seamless integration into your commercial environment.

Louvre Position Memory: This intelligent function ensures that your chosen airflow direction remains consistent, delivering customized cooling and heating performance tailored to your specific requirements, even after power restarts.

Power Supply

Power supply V,Ph,Hz

220-240V, 1Ph, 50/60Hz

Cooling (T1)

Capacity Btu/h

36000

Input W

2800

Current A

12.4

EER W/W

12.86324

Cooling (T3)

Capacity Btu/h

29500

Input W

3260

Current A

14.4

EER W/W

2.65

Heating

Capacity Btu/h

38000

Input W

2650

Current A

11.85

COP W/W

4.2

Indoor Fan Motor

New Model name

ZKFN-220-8-2

Type

DC

Qty

1

Input W

274

Output W

220

Capacitor uF

/

Speed(hi/mi/lo) r/min

800/750/700

Indoor Coil

Number of rows

3

Tube pitch(a)x row pitch(b) mm

21x13.37

Fin spacing mm

1.4

Fin type (code)

Hydrophilic aluminum

Tube outside dia.and type mm

Φ7,Inner groove tube

Coil length x height x width mm

1125x252x40.11+1125x252x40.11

Number of circuits

10

Indoor Air Flow / Noise Level

Indoor air flow (Hi/Mi/Lo) m3/h

1950/1750/1550

Sound level (sound pressure) dB(A)

51/49/46

Indoor Unit

Dimension (W x Hx D)(body) mm

910x910x287

Packing (W x Hx D)(body) mm

1015x1015x322

Dimension (W x Hx D)(panel) mm

1020x1020x50

Packing (W x Hx D)(panel) mm

1115x1115x107

Net/Gross weight(body) kg

34.4/41.3

Net/Gross weight(panel) kg

5.8/9.5

Refrigerant piping

Liquid side/ Gas side mm

9.52&19

Room temperature

Cooling ℃

17~32

Heating ℃

0~30

Indoor Specification

Design pressure MPa

4.8/1.5

Drainage water pipe dia. mm

ODΦ32mm

Controller

Remote control

Operation temperature ℃

17~30

Application area m2

36~53

Max. input consumption

Max. input consumption W

4300

Max. input current

Max. input current A

19.8

Compressor

Model

ATF310D43TMT

Type

ROTARY

Brand

GMCC

Capacity Btu/h

32346

Input W

2600

Rated current(RLA) A

5.1

Locked rotor Amp(LRA) A

/

Thermal protector position

INTERNAL

Capacitor μF

/

Refrigerant oil ml

RB75EA /1000

Outdoor Fan Motor

Model

ZKFN-120-8-2

Qty

1

Input W

150

Output W

120

Capacitor μF

/

Speed r/min

900

Outdoor Coil

Number of rows

3

Tube pitch(a)* row pitch(b) mm

21x13.37

Fin spacing mm

1.4

Fin type

Hydrophilic aluminum

Tube outside dia.and type mm

Φ7,Inner groove tube

Coil length * height * width mm

1000x756x13.37+980x756x13.37+965x756x13.37

Number of circuits

6

Outdoor noise level

Outdoor noise level (sound pressure) dB(A)

63

Throttle type

EXV

Outdoor Unit

Dimension(WxDxH) mm

946x410x810

Packing(WxDxH) mm

1090x500x885

Net/Gross weight kg

64.9/69.6

Refrigerant Type

Type

R410A

Charged volume kg

3.2

Design Pressure

Design pressure MPa

4.8/1.5

Refrigerant piping

Liquid side/ Gas side mm(inch)

Φ9.52/Φ19(3/8"/3/4")

Max. pipe length m

30

Max. difference in level m

20

Ambient Temperature

Cooling ℃

0~52

Heating ℃

-15~24

Container Loading

Qty’per 20’ /40’ /40'HQ Outdoor unit

44/96/138

CBM

Indoor Body m3

0.33173245

Indoor Panel m3

0.133025075

Outdoor m3

0.482325

TTL m3

0.947082525
